Vertical Laminar Air Flow Unit we manufacture, supply and export is fabricated using supreme quality materials. The Vertical Laminar Air Flow Unit offered by us is widely demand owing to its high end performance and reliability. Moreover, reasonable price has been fixed for the Vertical Laminar Air Flow Unit.

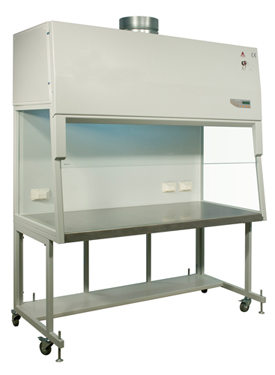

Vertical Laminar Air Flow Unit
- High product protection by provision of ISO Class 5 particle free work area
- Able enough to handle critical process
- Proven protection for the samples and processes
- The work area is continuously supplied with positive pressure HEPA filtered vertical air flow
- Vertical unidirectional airflow peed prevents contamination from operator and environment to work area.
- Laminarity of the flow handles cross contamination between the items in the working space.
- Made available in powder coated Mild Steel and SS 304 / SS 316/ SS 316L or a combination of both
- Two Stage filtration
- EU6 – Prefilter (95% down to 5 micron)
- EU14 – HEPA Filter – Supply (99.999% down to 0.3 micron)
- Dynamically balanced Motor-blower provided with suspension arrangement to minimize the noise level
- SS work table with due reinforcement
- Glass side panels
- Fluorescent Lights with Milky White Diffuser
- Differential Pressure Gauge : 1 No.
- On / Off Switch
- Clean Down Timer with Operation HOLD indicator
- DOP Test Port
- 5/15 Amp Switch Socket for external equipment
- Front doors (hinged/pneumatic cylinder)
- Night Mode Operation
- SS Air / Gas Cock
- U. V. Light with Hour Meter
- Velocity display with alarms (audible and visible)
- Filter blocked alarms (audible and visible)
- Explosion proof electrics for Flame-proof applications
- Audio / Visual alarm for blower tripping with Fault Acknowledgement & Reset Switch
- Photohelic Gauge with Audio / Visual Alarm in lieu of Magnehelic Gauge with High / Low Indicators
- Digital Pressure Gauge in lieu of Magnehelic Gauge
- On Line Velocity Indicator with Audio / Visual Alarm with High / Low Indicators
For handling of non hazardous products :
- Sensible to dust
- Susceptible to contamination where operator protection not necessary
| Model | Hepa Filter Area (L x W) | Work Area Dimension (L x W x H) |
|---|---|---|
| CSVF-48-24 | 1220 x 610 MM | 1320 x 760 x 685 MM |
| CSVF-36-24 | 915 x 610 MM | 1015 x 760 x 685 MM |
| OPERATIONS | MEASUREMENT |
|---|---|
| Air cleanliness | ISO Class 5 (ISO 14644-1:1999 (E)) |
| Air Velocities | 0.45 ± 0.05 mps |
| Air Flow | Horizontal |
| Noise Level | Less than 67 dB |
| Vibration Level | Minimum |
| Light intensity | > 300 lux |
| Power Supply | > 230V AC 1-Ø 50HZ |
